Coil Processing & Leveling

For sheets

Liebovich provides quick turnaround on a full spectrum of coil processing operations on a wide inventory of coil products up to 72 inches wide in standard or custom lengths: Stainless, Aluminum, Galvanized, Galvannealed, Cold Roll, Coated Products. We also provide a variety of protective films, can construct customer skids as needed and deliver small or large orders, on-time, with Liebovich’s highly respected drivers and state of the art fleet.

Questions? Contact one of our helpful sales managers.

Coil Processing & Leveling

Capabilities

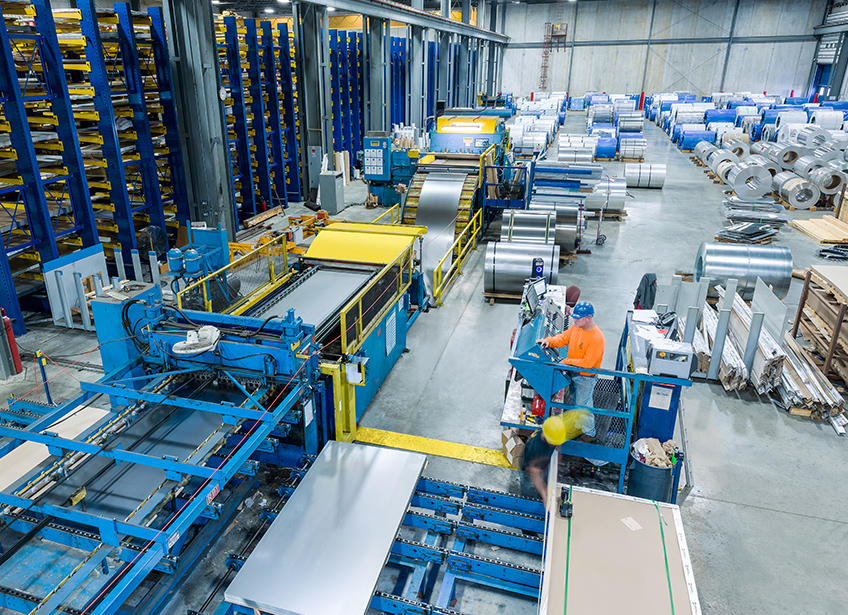

72″ redbud cut to length line capabilities

Leveler6 High herr voss (2.187″)
FeedHeavy duty dual grip feed
Material/ThicknessAluminum0.030″ - 0.190″
Stainless & Steel0.030″ - 0.135″
Width (min/max)12″ - 74″
Length (min/max)10″ - 192″ (Standard)
Inquire on >192″
Coil Weight (max)50,000 lbs.
O.D. (max)84″
I.D. / I.D (min/max)20″ - 25″
Surface ProtectionBoth sides - pvc / top side - paper
Line MarkStenciler top side
Skid weight (max)10,000 lbs. (5,000 lbs. standard)
Stack height (max)10″ of material on a standard 10″ skid

Tolerances

(ASTM or as noted)

Width(Mill spec)
Length (no camber, measured in the center)±0.050″ std (up to 96″)
±0.030″ spec (up to 96″) inquire
Diagonal (depending on coil camber)±0.060″ std (no camber)
±0.030″ spec (no camber) inquire
Flatness0.1875″ std
0.050″ spec (good coil) inquire

Why Liebovich?

  • Quick turnaround and on-time performance
  • No parts minimums — from 1 to 1,000+ pieces
  • Save on labor, machining, forming and time
  • One-stop shopping from material to finished part
  • Reduce your scrap, increase your profits
  • Additional processing available to meet your finished part needs
