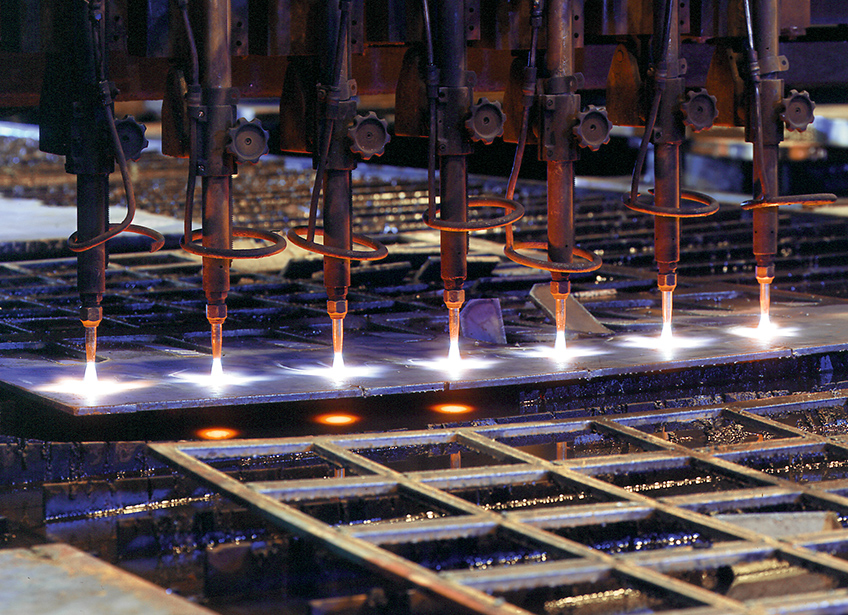

Oxy / Flame Cutting

For sheets and plates

Liebovich offers unparalleled turnaround and quality. We work from CAD files, DXF files or shop drawings to deliver accurate, uniform cuts on virtually any type of plate.

Questions? Contact one of our helpful sales managers.

Oxy / Flame Cutting

Capabilities

Dimensions

Width (max)180″
Length (max)50′
Thickness (max)12″

Tolerances - Carbon Steel Plate

ThicknessTolerance
Less than 2″±116
2″ to 512±332
6″ to 712±532
8″ and up±316

Bevel

In addition to the tolerances listed above, a slight bevel of up to 12 degrees may occur.

ThicknessBevel
114132
212116
5″18
6″532
9″14

Beam Splitting Capabilities – Hot Roll Beams

Depth (max)8″
Weight (min)15 lb. per linear foot
Length (min)5′
Length (max)20′

*There is no tolerance on splitting of beam (this would include the cut, bow, or camber of the material after flamecutting).


Why Liebovich?

  • Quick turnaround and on-time performance
  • No parts minimums — from 1 to 1,000+ pieces
  • Save on labor, machining, forming and time
  • One-stop shopping from material to finished part
  • Reduce your scrap, increase your profits
  • Additional processing available to meet your finished part needs
